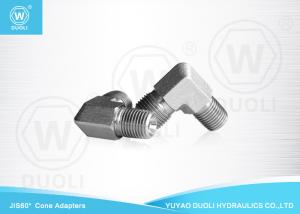

Hydraulic Elbow JIS Male Thread Flared Adaptor by carbon steel
Hydraulic Hose Fitting
1). Swaged Hose Fitting
Standard: Ferrule, Flat Seal, 60 Cone Seal, Multi seal,
74 Cone Seal, 90 Cone Seal,
24 Cone O-Ring Seal L.T., 24 Cone O-Ring Seal H.T.,
24 Cone Multi seal L.T., 24 Cone Multi seal H.T.,
Standpipe Straight
BSP O-ring Seal, BSPT, BSP Multi seal, BSP Flat Seal,
BSP60 Cone Seal, SAE O-Ring Seal, NPT, JIC74 Cone Seal,
SAE 90 cone seal, ORFS Flat Seal, NPSM60 Cone Seal,
SAE Flange L.T., SAE Flange H.T., Flange, Metric60 Cone Seal, GAS60 Cone Seal,
Metric Water wash, Staplelok, Banjo, NPT Awivel, SAE O-Ring Boss Awivel, Double Connection
2). Interlock Hose Fitting
Standard: Ferrule, British, NPT, ORFS Flat Seal, JIC74 Cone Seal, Metric 24 Cone Seal H.T., SAE Flange, 9000PSI Flange, Double Connection
3). Reusable Hose Fitting
4). Socket less Hose Fitting
2. Hydraulic Adapter
Metric Thread Bite Type Tube Fittings
Metric Thread O-Ring Face Seal Fittings
Metric Thread 74 Cone Flared Tube Fittings
Metric Thread Bite Type Tube Fittings
BSP Thread 60 Cone Fitting
BSPT Thread Fittings
JIC 74 Cone Flared Tube Fitting
NPT Thread Fittings
ORFS Fittings
Application:
Automobile,Engineering Machinery,Lathe,Agriculture Machine,Mining,Spurting the Oil Paint, Metallurgy petroleum, Construction, Chemicals,Textile, Ships, Ocean Military, Recreation, Electronics and so forth.
| |
Thread |
WINNER PART NO. |
| PART NO. |
1 |
2 |
| A5EA-02-02 |
G1/8"×28 |
R1/8"×28 |
1ST9-02 |
| A5EA-02-04 |
G1/8"×28 |
R1/4"×19 |
1ST9-02-04 |
| A5EA-04-04 |
G1/4"×19 |
R1/4"×19 |
1ST9-04 |
| A5EA-04-02 |
G1/4"×19 |
R1/8"×28 |
1ST9-04-02 |
| A5EA-04-06 |
G1/4"×19 |
R3/8"×19 |
1ST9-04-06 |
| A5EA-06-06 |
G3/8"×19 |
R3/8"×19 |
1ST9-06 |
| A5EA-06-04 |
G3/8"×19 |
R1/4"×19 |
1ST9-06-04 |
| A5EA-06-08 |
G3/8"×19 |
R1/2"×14 |
1ST9-06-08 |
| A5EA-08-08 |
G1/2"×14 |
R1/2"×14 |
1ST9-08 |
| A5EA-08-06 |
G1/2"×14 |
R3/8"×19 |
1ST9-08-06 |
| A5EA-08-12 |
G1/2"×14 |
R3/4"×14 |
1ST9-08-12 |
| A5EA-12-12 |
G3/4"×14 |
R3/4"×14 |
1ST9-12 |
| A5EA-12-08 |
G3/4"×14 |
R1/2"×14 |
1ST9-12-08 |
| A5EA-12-16 |
G3/4"×14 |
R1"×11 |
1ST9-12-16 |
| A5EA-16-16 |
G1"×11 |
R1"×11 |
1ST9-16 |
| A5EA-20-20 |
G1.1/4"×11 |
R1.1/4"×11 |
1ST9-20 |
| A5EA-24-24 |
G1.1/2"×11 |
R1.1/2"×11 |
1ST9-24 |
| A5EA-32-32 |
G2"×11 |
R2"×11 |
1ST9-32 |
Attribute:
| Attribute name |
Attribute value |
Attribute name |
Attribute value |
| materil |
carbon steel |
head code |
circle |
| technology |
forged |
shape |
adapter |
| type |
Adaptor |
connection |
male |
| origin |
zhejiang china |
colour |
white |
| model number |
1ST9 |
standard |
EATON |
| brand |
Duoli |
surface treatment |
galvanized |
Our QC procedure:
As we had more than 5 professional and technical personal, they ensure 100% products checking.
1. Material checking: strictly control of material using, meet international requested standards;
2. semi-finished products inspection: product inspection before 100% finished ;
3. production line test: with work team or data engineer who will inspect matchines and lines at fixed period.
4. finished prodcuct inspection: quality and property test before products are plated zinc, packed and loaded.
Product Tags:
|
|
Elbow Male Thread 60° JIS Hydraulic Fittings , Inverted Flare Adapter Fittings Images
|
