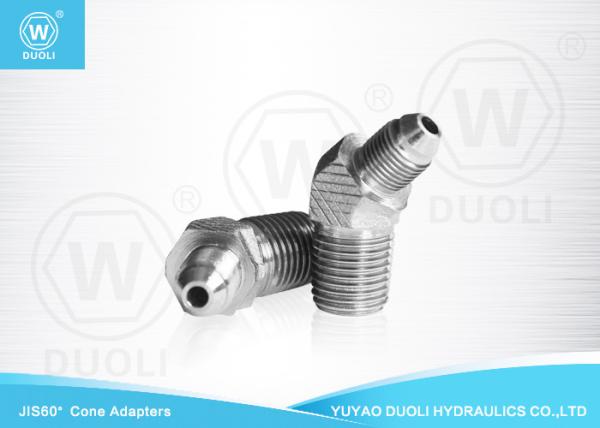

45° Elbow JIS Male Hydraulic Flared Adaptor by carbon steel
External thread
When the diameter is the largest and the largest diameter, the two thread elements must be concentric,
however, if the size is not round, the size is small, in the non round point, the diameter and diameter will
produce deviation
In the middle of the smallest, the largest diameter, the two elements of the total runout can not be greater
than the middle diameter tolerance;
The diameter of the largest, the largest diameter of the hour, the two elements of the eccentricity of the
full jump is not greater than the large diameter tolerance;
The diameter of the smallest, the largest diameter of the hour, the two elements of the total runout can
not be greater than the diameter of the tolerance tolerance
Product Description
| | Thread | WINNER PART NO. |
| PART NO. | 1 | 2 |
| A6EA-04-04 | G1/4"×19 | R1/4"×19 | 1ST4-04 |
| A6EA-04-02 | G1/4"×19 | R1/8"×28 | 1ST4-04-02 |
| A6EA-04-06 | G1/4"×19 | R3/8"×19 | 1ST4-04-06 |
| A6EA-04-08 | G1/4"×19 | R1/2"×14 | 1ST4-04-08 |
| A6EA-06-06 | G3/8"×19 | R3/8"×19 | 1ST4-06 |
| A6EA-06-04 | G3/8"×19 | R1/4"×19 | 1ST4-06-04 |
| A6EA-06-08 | G3/8"×19 | R1/2"×14 | 1ST4-06-08 |
| A6EA-08-08 | G1/2"×14 | R1/2"×14 | 1ST4-08 |
| A6EA-08-06 | G1/2"×14 | R3/8"×19 | 1ST4-08-06 |
| A6EA-12-12 | G3/4"×14 | R3/4"×14 | 1ST4-12 |
| A6EA-12-08 | G3/4"×14 | R1/2"×14 | 1ST4-12-08 |
| A6EA-16-16 | G1"×11 | R1"×11 | 1ST4-16 |
| A6EA-16-12 | G1"×11 | R3/4"×14 | 1ST4-16-12 |
| A6EA-20-20 | G1.1/4"×11 | R1.1/4"×11 | 1ST4-20 |
| A6EA-24-24 | G1.1/2"×11 | R1.1/2"×11 | 1ST4-24 |
| Name | 45 degree bspt to bspt male thread hydraulic adapters |
| Brand Name | Duoli |
| Material | Carbon Steel |
| Thread type | JIS/BSPT MALE |
| Technical | CNC Machines |
| Size | From 1/8" to 1.1/2" |
| Surface Treatment | White Zinc-Plated |
| MOQ | 500 pieces |
| Product Attributes | High pressure, high temperature |
| Trading Method | EXW, FOB, CIF |
| Payment | T/T |
Packaging & Delivery
OEM Packing
We can make customer's brand packing and we will protect your brand,will not show others' your packing.
About package
1. After order is placed,we will confirm with customer all the printing details including box design,shippment mark,pallet mark ect
2. All insturction will be follow during the order is produced
3. Before shippment,we will take photoes for customer for approval
About Shippment
Shipments for small sample order are via DHL,TNT,UPS, or Fedex etc ,normal order is Via Sea from ningbo port or shanghai port.If you need other port,you should tell us before ordering as the cost is different.
About the delivery time
Standard lead time is about 7-30 days or according to the order quantity
We provide both quality product and good service, ensuring an excellent customer experience. We are committed to solve any problem associated with our products. We are looking forward to the opportunity of serving you.
FAQ
1. Are you a manufacture?
A: Yes, we are a manufacture with rich experience.
2. Can I visit your factory ?
A: Its welcome! The nearest airport is jieyang airport.
3. Can you add my logo on the product?
A: Yes, customized logo are welcome. OEM and ODM is OK for us.
